LV Switchboards & Distribution

Precision-engineered. Fully certified. Delivered on time.

R&R Engineering design and manufacture a comprehensive range of Low Voltage Switchboards, Motor Control Centres (MCCs) and Control Panels. All products are Type Tested to BS EN 60439-1:1999 and produced within a BS EN ISO 9001:2000 certified facility. Backed by a CAD standards library of over 10,000 pre-engineered modules, we respond quickly and accurately to customer requirements — without compromising on quality.

7,400A

Max Busbar Rating

375kA

Peak Withstand

IP66

Max Enclosure Rating

Form 4

Standard ASTA Form

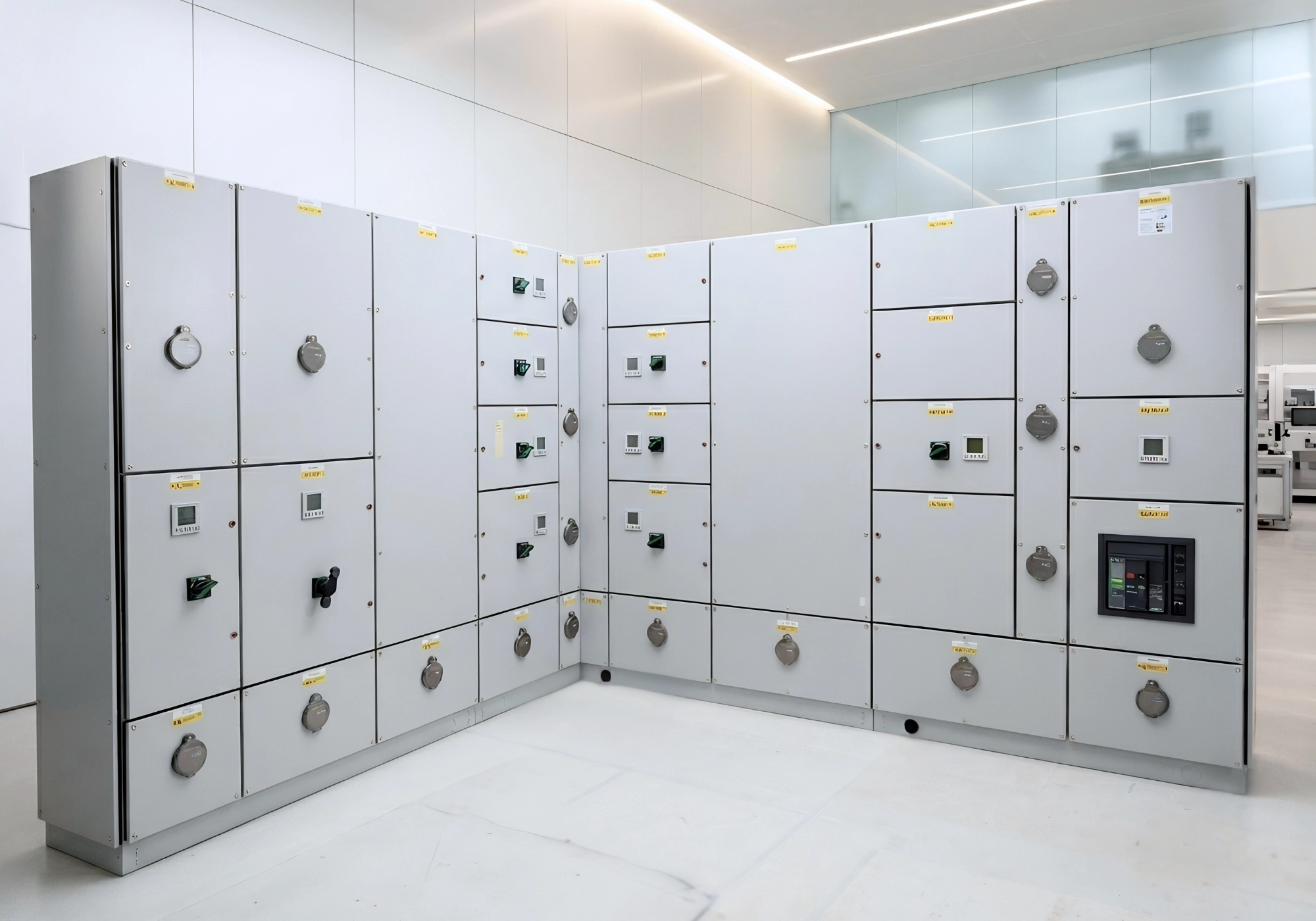

POWER DISTRIBUTION & SWITCHGEAR

Our switchgear range is built on a Type Tested Assembly (TTA) platform, offering a modular, flexible solution for power distribution across a wide range of applications. Every assembly is configured to your exact project requirements:

  • 3- and 4-pole busbar systems rated up to 7,400A
  • Peak withstand current up to 375kA
  • Standardised busbar position at the top of the cubicle
  • Deep switchgear compartment for universal installation
  • Modular device compartments suitable for any component configuration
  • Components can be installed regardless of busbar position or cubicle depth
  • Single-front and back-to-back installation options
  • Cable entry from above or below, with front- or rear-located cabling compartments
  • Compartmentalisation from Form 1 to Form 4 in accordance with BS EN 60439-1
  • Wall-mounted or free-standing configurations available

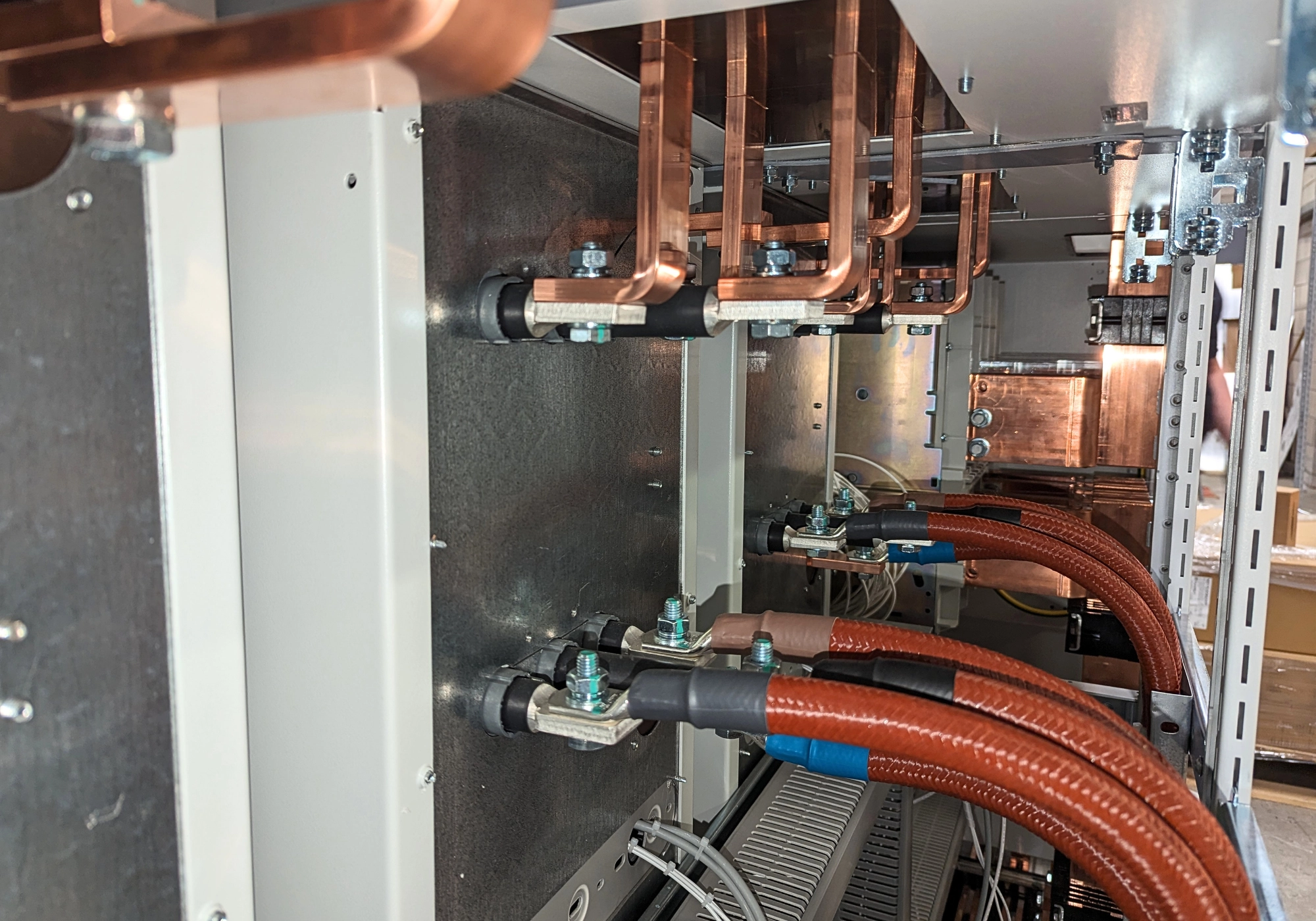

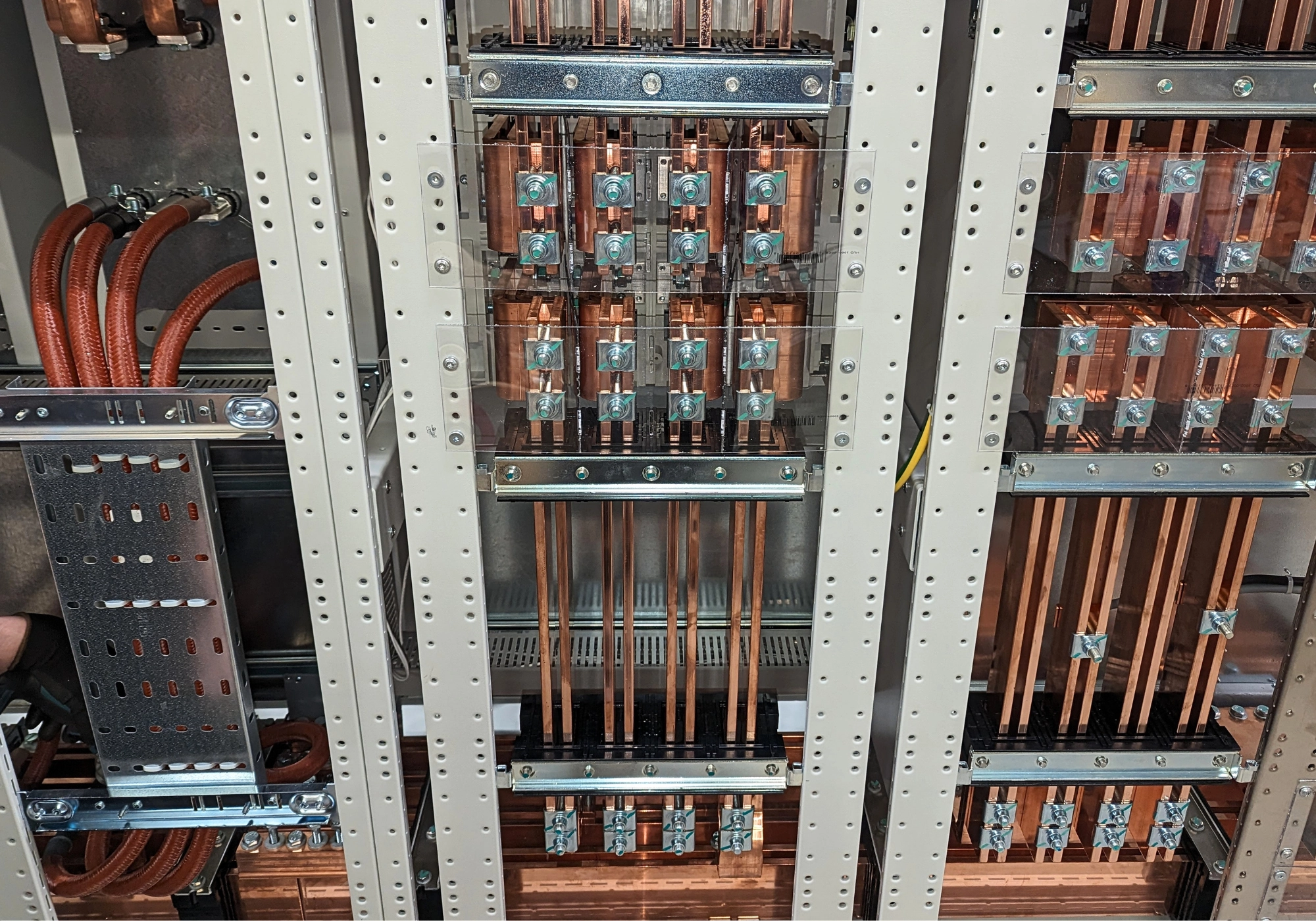

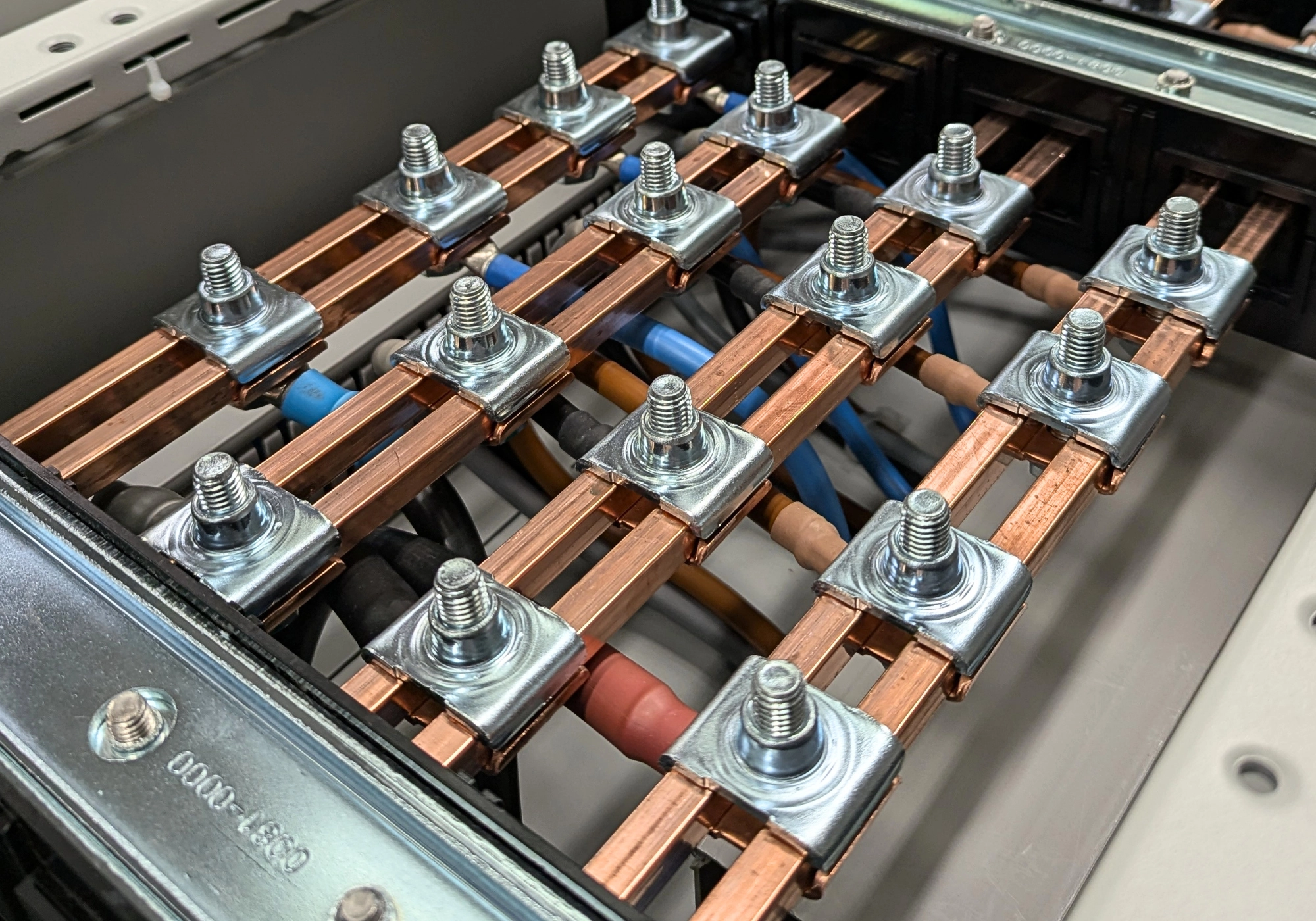

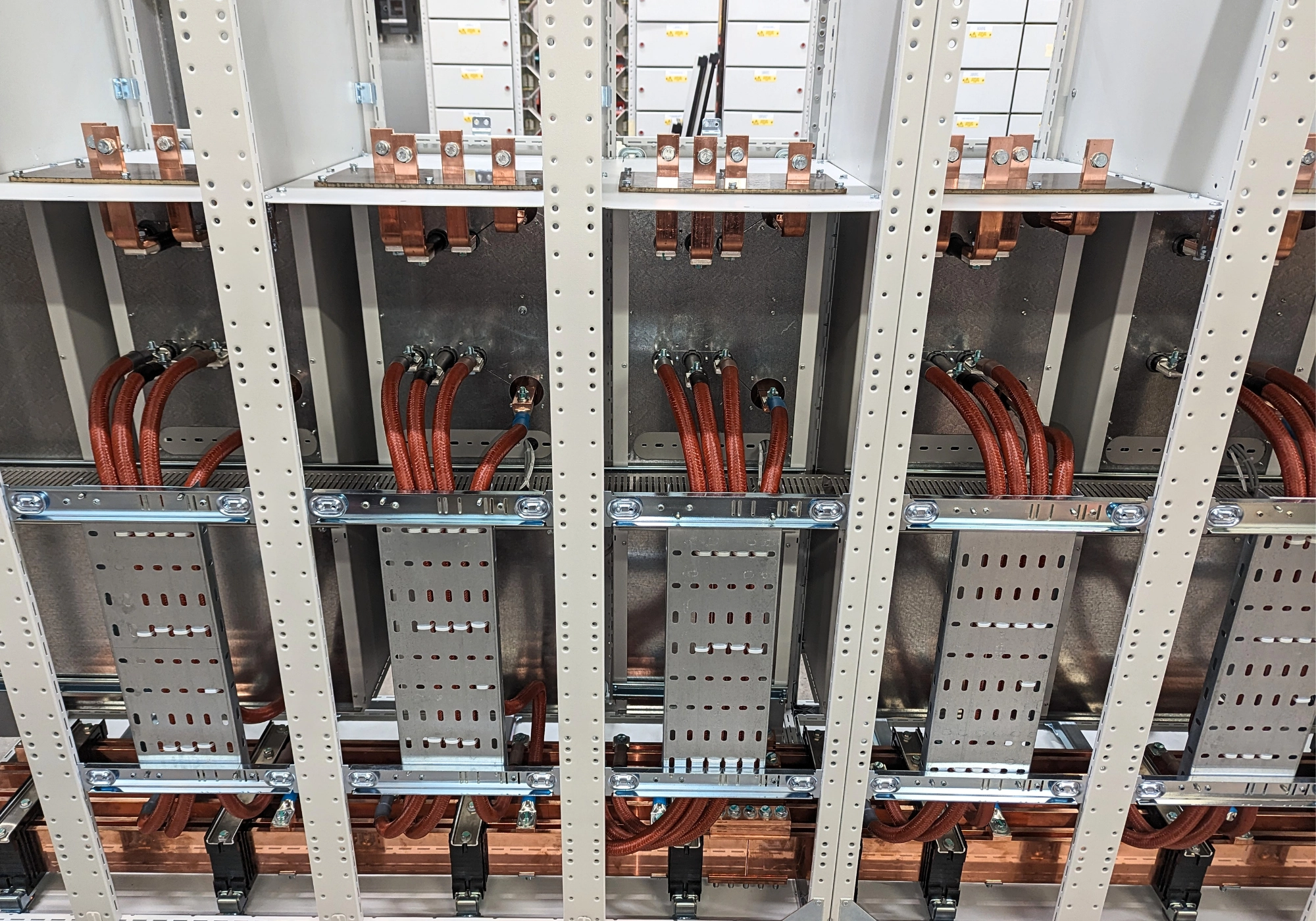

BUSBAR SYSTEMS & INTERNAL ASSEMBLY

Every R&R Engineering switchboard is built around a precision-engineered copper busbar system, assembled and tested in-house to the highest standards. Our busbar configurations are sized and specified to match the exact current and fault level requirements of each installation — from the main incoming busbar through to individual outgoing circuit connections.

  • Copper busbar systems rated up to 7,400A
  • 3- and 4-pole configurations to suit all installation types
  • Standardised busbar position at the top of the cubicle for consistent, accessible layout
  • Full compartmentalisation in accordance with BS EN 60439-1
  • All busbar connections torque-tightened and inspected prior to testing
  • Every assembly factory-tested before dispatch

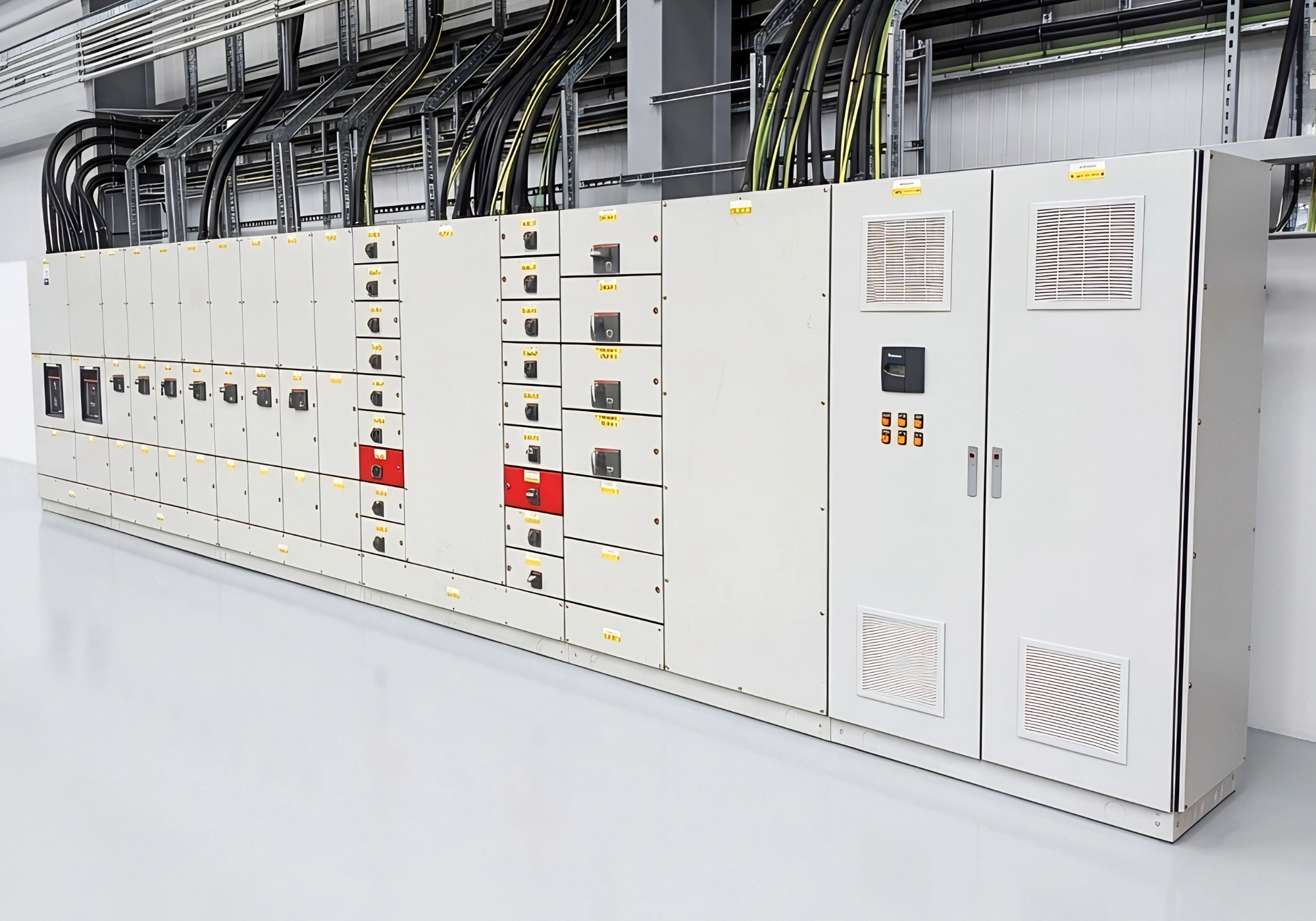

MOTOR CONTROL CENTRES

Our Motor Control Centres are manufactured in individual tiers to maximise flexibility, with every unit fault level tested to ensure safe, reliable performance in demanding environments. Available configurations cover a full range of prospective fault currents to suit your installation:

  • 26kA for 1 second
  • 50kA for 1 second
  • 50kA for 3 seconds
  • 80kA for 1 second

Configuration options include front and rear access, front access only, and back-to-back with front access — with top and bottom cable entry available across all options.

Read More

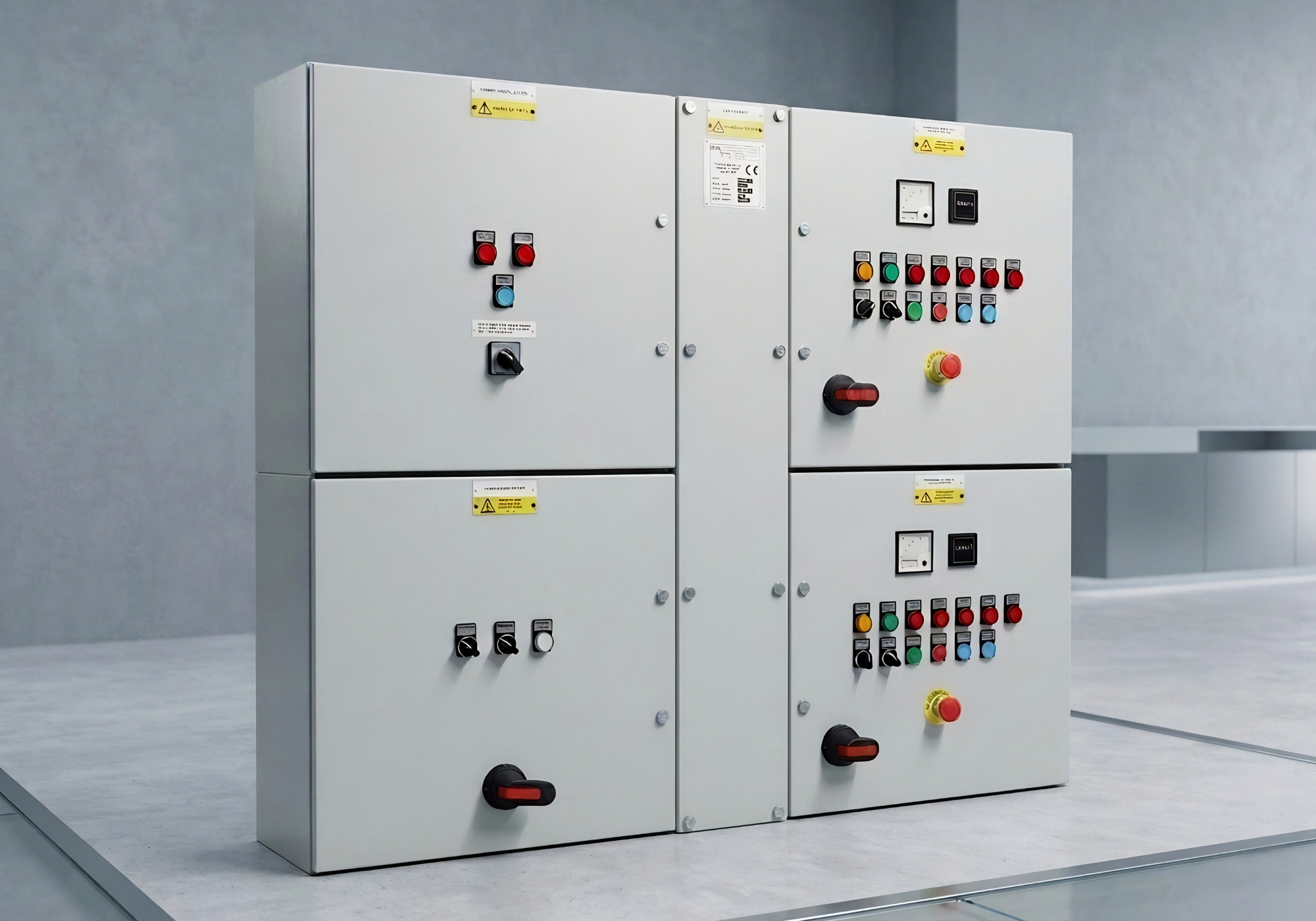

CONTROL PANELS

Whether you need a straightforward motor starter or a complex multi-starter process control system, our panels are engineered to meet your exact specification:

  • Wall-mounted and floor-standing configurations available as standard
  • IP54 enclosures as standard, with ratings up to IP66 using proprietary enclosures
  • Control desks available where required
  • Single starters including Direct On Line (DOL), Autostarter (ASD), Soft Start and Variable Speed Drive (VSD)
  • Complex multi-starter process control systems
  • Designed to meet BS EN 60439-1:1999, the Low Voltage Directive and the EMC Directive
Read More

Sectors We Serve

Delivery & Logistics

Integral low-level lifting facilities as standard. Single-column delivery available where site access demands it. Assembled lengths of up to 6 metres to minimise on-site re-assembly.

Pre-Installation Support

A team of supervisors is available prior to works commencing to agree installation methods and delivery timings. Site surveys carried out to ensure the most efficient approach.

Re-Assembly & Certification

Re-assembly at site is a specialist operation. R&R Engineering provides this service on request, with full certification to confirm equipment enters service exactly as intended.

Ready to discuss your project?

Contact our team today to talk through your requirements.

Request a Quote
